Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory

Name: Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory
Brand: Shenzhen Helor Cloud Computer Co., Ltd.
SKU: X114
Price: 222.38 USD
Availability: InStock

ブランド名:	Helor PC
モデル番号:	X114
MOQ:	1個
価格:	222.38usd
納期:	15営業日
支払い条件:	T/T、D/A、D/P、L/C、ウェスタンユニオン

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

Ce, Rohs, Sgs

プロセッサーシステム:

コア I5 8305G

設置方法:

デスクトップおよび壁掛け設置をサポート

寸法:

210mm*150mm*68mm

保管温度:

-30℃～+70℃

動作温度:

-20℃～+60℃

保管湿度:

10%～90%、結露なきこと

パッケージの詳細:

カラーボックス

供給の能力:

50000個/月

製品説明

Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory

Product Introduction of Mini Industrial PC

Equipped with Intel Core i5-8305G processor, this mini industrial PC is a multi-functional device integrating computing, serial communication, multi-screen display and

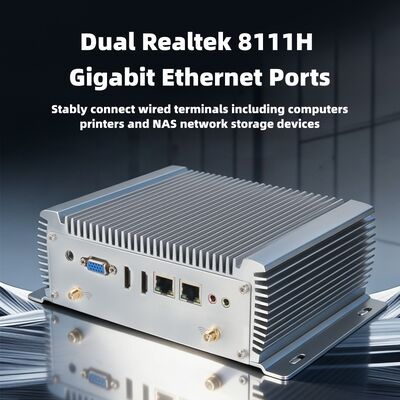

network networking, specially built for industrial production lines, monitoring computer rooms and small office network environments. Dual Realtek 8111H Gigabit

Ethernet ports can connect internal network devices and external network lines separately, adapting to network deployment scenarios such as software routers,

firewalls and data acquisition. It can stably link wired terminals including computers, printers and NAS network storage devices to comprehensively upgrade on-site

network infrastructure. As an industrial-grade device, it comes with 2*DB9 RS232 serial ports onboard, which can connect to industrial peripherals like PLCs, PTZ

cameras and sensors. It stably completes equipment data collection and command transmission, avoiding communication disconnection and data garbled codes in

industrial sites. Equipped with dual 4K@30Hz HD*MI ports plus a VGA port, it supports synchronous triple-screen display to meet the demands of multi-screen split

monitoring and multi-screen office work.

Product Specifications of Mini Industrial PC

Processor System	Core I5 8305G
Memory	2*DDR4 SODIMM, up to 64GB
Network	2*R45 Realtek 8111H
Storage	2M.2 NVME 2280(One of them supports the SATA protocol), 1HDD/SSD
Front Interfaces	1Power Button, 4USB3.0, 4USB2.0, 2COM ports
Rear Interfaces	1DC power input, 2WIFI antenna ports, 1VGA, 2HD-MI, 2LAN ports, 1Microphone jack, 1*Headphone jack
Expansion Slots	1*M.2 2232 WIFI
Power Input	12V-19V
OS Support	Win10, Win11, Linux
Functions	Supports Watchdog and Diskless Boot

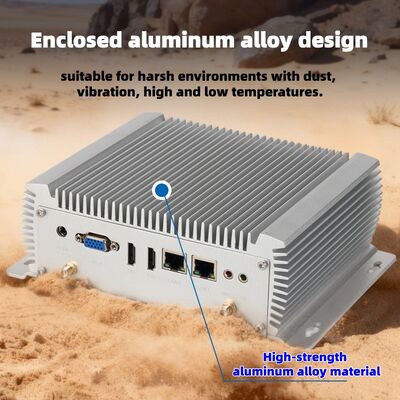

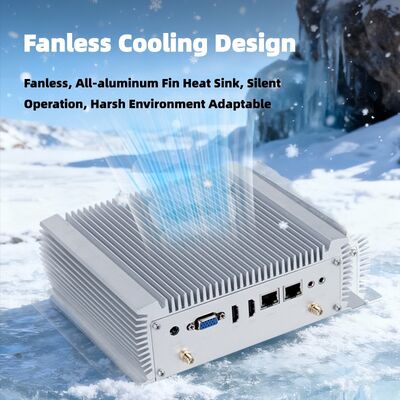

Environmental Adaptability of Mini Industrial PC

This dual-network & dual-serial port industrial PC boasts outstanding environmental adaptability. It features dustproof, anti-corrosion, shock & impact resistant, wide

temperature resistance performance, capable of operating in all kinds of harsh environments.

Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory 0

Application Scenarios of Mini Industrial PC

This mini PC with RS232 serial ports can work in special factory environments of various workshops and industries. It is widely applied in automated industry, workshop

equipment, financial hardware, automotive assembly, smart transportation, shopping mall self-service terminals and more scenarios.

Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory 1

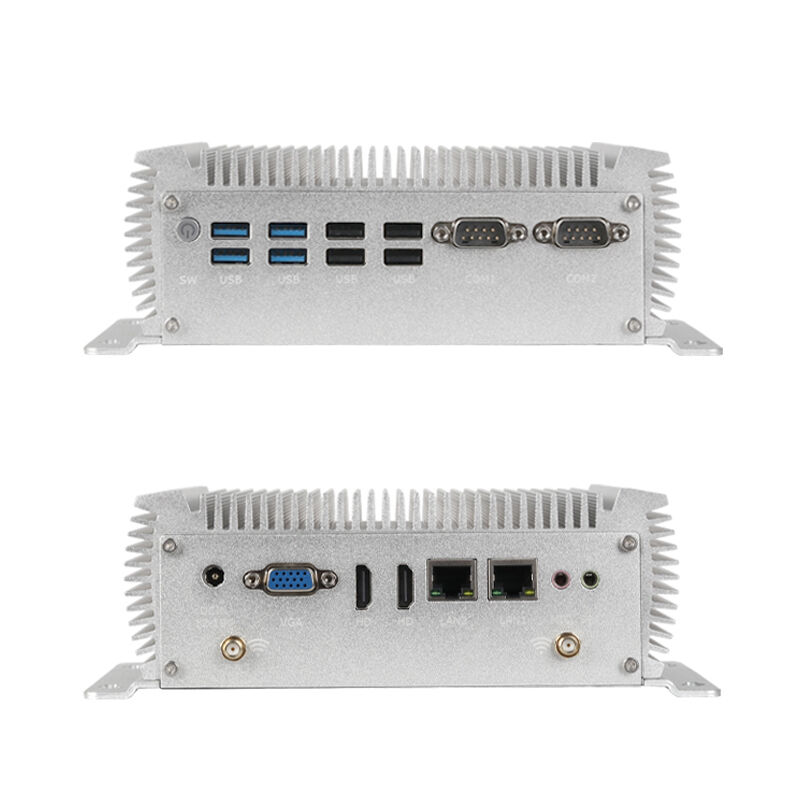

Interface Description of Mini Industrial PC

This industrial PC features abundant interfaces and powerful expandability to satisfy diverse industrial demands. Front interfaces: 1*Power Button, 4*USB3.0, 4*USB2.0,

2*COM ports; Rear interfaces: 1*DC power input, 2*WIFI antenna ports, 1*VGA, 2*HD-MI, 2*LAN ports, 1*Microphone jack, 1*Headphone jack.

Intel Core I5 8305G Processor Mini Pc With 2 RS232 COM 2 LAN 1 VGA 2 HD-MI For Factory 2

Expandable Functions of Mini Industrial PC

This model equipped with Intel Core 1235U processor delivers comprehensive expansion capabilities. It features dual DDR4 SODIMM memory slots, supporting a

maximum expandable memory of 64GB for smooth multi-task parallel processing without lag. For storage, it comes with two M.2 NVMe 2280 slots (one compatible

with SATA protocol) plus a 2.5-inch hard drive bay. Multiple storage combinations meet the demand for large-capacity local data storage. An independent M.2 2232

WIFI expansion slot is reserved. Combined with dual antenna interfaces, a wireless network card can be installed to realize wired + dual wireless networking mode,

enabling flexible deployment even in scenarios with wiring restrictions.
