Industrial Mini PC with 1-Year Warranty Compact 133mm*125mm*40mm Aluminum Shell Fanless Design

Industrial Mini PC with 1-Year Warranty Compact 133mm125mm40mm Aluminum Shell Fanless Design

ブランド名:	HLY
モデル番号:	H30G-N2930
MOQ:	1

製品の説明

起源の場所:

プロセッサコア:

クアッドコア

RAMタイプ:

RAM速度:

1066/1333/1600MHz

RAM電圧:

1.35V

SSDタイプ:

mSATA + 2.5インチSSD

Intel HDグラフィックス

ビデオメモリ:

256 MB

表示ポート:

VGA + HD

最大解像度:

1920×1080@60Hz

USBポート:

USB2.0×2、USB3.0×2

RS232ポート:

2xRS232 COM

LANポート:

2xLAN、10/100/1000 Mbps

電源入力:

DC12V 3A/36W

動作温度:

-20〜65°C

133mm*125mm*40mm

ハイライト:

1-Year Warranty Industrial Mini PC

133mm125mm40mm Industrial Mini PC

Aluminum Shell Industrial Mini PC

製品の説明

HelorPC Industrial Fanless Portable Mini PC Computer

Compact, fanless industrial mini PC featuring Intel Celeron processor, dual NIC, RS232 ports, and multiple connectivity options for versatile applications.

Technical Specifications

Processor	Intel Celeron Processor N2830, 1M Cache, up to 2.41 GHz, 2 Core 2 threads, TDP:7.5W Intel Celeron Processor N2930, 2M Cache, up to 2.16 GHz, 4 Core 4 threads, TDP:7.5W Intel Celeron Processor 2955U, 2M Cache, 1.40 GHz, 2 Core 2 threads, TDP:15W Intel Celeron Processor 3205U, 2M Cache, 1.50 GHz, 2 Core 2 threads, TDP:15W Intel Celeron Processor J1800, 1M Cache, up to 2.58 GHz, 2 Core 2 threads, TDP:10W Intel Celeron Processor J1900, 2M Cache, up to 2.42 GHz, 4 Core 4 threads, TDP:10W Intel Celeron J4105 Processor, 4M Cache, up to 2.50 GHz, 4 Core 4 threads, TDP:10W Intel Pentium Processor 3805U, 2M Cache, 1.90 GHz, 2 Core 2 threads, TDP:15W Intel Core i3-4010Y Processor, 3M Cache, 1.30 GHz, 2 Core 4 threads, TDP:11.5W Intel Core i3-4010U Processor, 3M Cache, 1.70 GHz, 2 Core 4 threads, TDP:15W Intel Core i5-4200U Processor, 3M Cache, up to 2.60 GHz, 2 Core 4 threads, TDP:15W Intel Core i3-5005U Processor, 3M Cache, 2.00 GHz, 2 Core 4 threads, TDP:15W
Display	GPU: Intel HD Graphics VGA: Max Resolution 1920×1080@60Hz HD: Max Resolution 1920×1080@60Hz Dual display: VGA + HD, Support for Synchronous or Asynchronous Display
Memory	2GB/4GB/8GB DDR3L 1066/1333/1600MHz 1.35V 1×204-pins SO-DIMM Maximum capacity: 8GB
Hard Disk	SSD: 1×Full Height mSATA socket, 16GB/30GB/60GB/120GB/240GB/500GB mSATA SSD HDD: Support SATA 2.5" HDD
Supported OS	Official Win10/8/7/Linux/Ubuntu/CENTOS, etc. Notice: We pre-install Win7/8/10 OS for testing only. For legal genuine OS, please contact us.

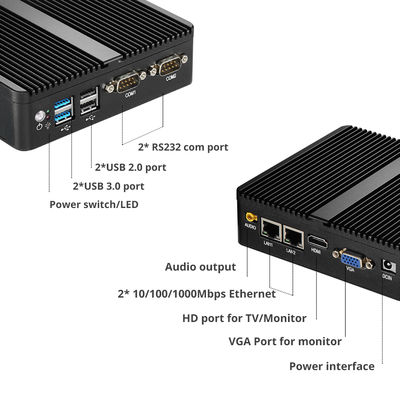

Ports	2×USB 2.0 2×USB 3.0 2×RS232 COM 2×LAN, 10/100/1000 Mbps Realtek 8111F, support wake on LAN 1×VGA 1×HD 1×Audio
Audio	Realtek ALC662 audio control chip, support dual channel, stereo, Line out
Extension	1× Half Height Size Mini PCIE
Power Requirement	DC 12V 3A/36W (AC TO DC, 100~240V)
Working Environment	Operating Temperature: -20°C to 65°C Storage Temperature: 15°C to 35°C Relative Humidity: 5% to 95% (non-condensing)
Structure	Aluminum Shell, Fanless
Dimensions	133mm × 125mm × 40mm
Package Contents	1 × Mini PC 1 × User manual 1 × Power adapter 1 × VESA mount 1 × SATA data and power cable 2 × Wifi Antenna (Except Barebone)

Company Profile

Shenzhen Helor Cloud Computer Co., Ltd (HLY), located in Shenzhen, Guangdong and specialized in mini computers since 2013, has our own professional motherboard manufacturer. We have developed more than 50 kinds of products applied in different fields including AI, office working, education, entertainment, advertising, transport, military, and industrial applications.

Our mini PCs are sold in more than 60 countries and regions with annual sales exceeding one million units. HLY carries the line of over 20 manufacturers of computer components, communications products and specialized electronics for automation control, offering leading edge devices with the latest technological developments at competitive prices.

Packaging & Shipping

Power Adapter

We have multiple specifications of power supplies, which are selected by default based on your shipping address. If you have special demands, please contact us.

Payment Methods

We support L/C; DA; DP; T/T; Western Union; Alibaba and negotiation.

Packaging

We carefully wrap the mini PC and parts with a waterproof bag, then fix it in the inner carton box with foam board. The inner box is placed into the outer box, which is then sealed with tape.

Shipping Methods

Shipping by DHL, FedEx, UPS, Aramex, post and Alibaba, and negotiation (choose as you prefer).

Frequently Asked Questions

1. How about the warranty?

The first year we provide free repair service. The second and third year, free repair but we will charge for any parts that need replacement.

2. Can I print my logo on your mini PC?

Yes, please provide your logo file, and we will confirm the design effect with you before production. We also support OEM/ODM services.

3. What is the MOQ?

We can sell one sample for your test.

4. How long does it take to prepare the package after purchase?

It takes about three days for inspection and assembly. Generally, 10 units can be shipped in about 3 days, and 50 units in about 8 days. Please check with us for more information.

5. Are your mini PCs in stock?

Yes, most of our models are in stock. You can confirm the inventory with us before placing your order.
