Created with Pixso. Intel Core i5-4200U Industrial Mini PC with 6*RS232 RS422 RS485 8*USB and IP68 Rated Fanless Embedded Computer

Intel Core i5-4200U Industrial Mini PC with 6*RS232 RS422 RS485 8*USB and IP68 Rated Fanless Embedded Computer

ブランド名: HLY
MOQ: 2
詳細情報
起源の場所:
中国広州
CPUモデル:
インテル Core i5-4200U
CPU速度:
最大2.60GHz
GPUモデル:
インテル HD グラフィックス 4400
RAMタイプ:
DDR3L (1.35V)
RAM容量:
2GB/4GB/8GB
ストレージタイプ:
mSATA または 2.5 インチ SATA
ストレージ容量:
30G/60G/120G/240G SSD または 500G/1T HDD
Wifiの速度:
300m
LANポート:
2x ギガビット LAN
USBポート:
8x (4x USB2.0、4x USB3.0)
Comの港:
6x (RS232/RS422/RS485)
ビデオ出力:
VGA x1、HDMI x1
電源入力:
12V、5A
動作温度:
-20 ℃〜80℃
寸法:
248×150×82mm
重さ:
1.9kg
ハイライト:

6*RS232 RS422 RS485 Industrial Mini PC

,

8*USB Embedded Industrial Computer

,

IP68 Rated Fanless Industrial PC

製品の説明
HLY Intel Core i5 4200U Industrial Mini PC - Fanless Design with Multiple I/O Ports
Product Overview

The HLY Intel Core i5 4200U Industrial Mini PC is a high-performance, fanless computing solution designed for industrial applications. Featuring multiple serial ports (6x RS232/RS422/RS485), 8x USB ports, dual LAN, and WiFi connectivity, this compact system supports both Windows and Linux operating systems.

Key Features
  • Intel Core i5-4200U Processor (3M Cache, up to 2.60 GHz)
  • Intel HD Graphics 4400
  • 1x DDR3L RAM slot (Low voltage 1.35V) with 4G/8G options
  • Supports mSATA storage
  • mPCIe half-size slot for 300M WiFi
  • Gigabit LAN connectivity
  • Fanless cooling system for silent operation
  • IP68 protection rating (where applicable)
Intel Core i5-4200U Industrial Mini PC with 6*RS232 RS422 RS485 8*USB and IP68 Rated Fanless Embedded Computer 0 Intel Core i5-4200U Industrial Mini PC with 6*RS232 RS422 RS485 8*USB and IP68 Rated Fanless Embedded Computer 1 Intel Core i5-4200U Industrial Mini PC with 6*RS232 RS422 RS485 8*USB and IP68 Rated Fanless Embedded Computer 2
Technical Specifications
Category Details
General Brand: HLY
Type: Mini PC
Processor: Intel Core i5-4200U
Cores: 2
GPU: Intel HD Graphics 4400
RAM: 1x DDR3L slot (2G/4G/8G options)
Storage: Supports mSATA and 2.5" SATA
WiFi: mPCIe (half-size) 300M optional
I/O Ports 4x USB 2.0, 4x USB 3.0
1x VGA, 1x HDMI
2x LAN ports
1x MIC and Speaker
1x Power Switch
6x COM RS232 (COM1/2 configurable as RS485/RS422)
Power Requirements External Power Adapter
Input: 12V, 5A
Operating Environment Temperature: -20°C to 80°C
Storage Temperature: 0°C to 80°C
Humidity: 10% to 90% (non-condensing)
Dimensions 248 x 150 x 82mm

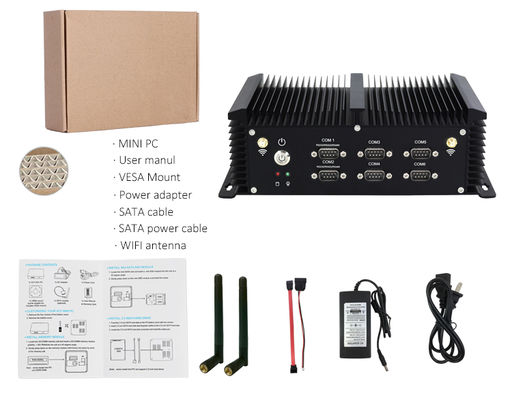

Package Contents
Item Quantity
Mini PC 1
User Manual 1
VESA Mount 1
WiFi Antenna 2
Power Cable 1
SATA Cable 1
Hard Disk Mounting Bracket 1
Power Adapter 1
Shipping & Packaging

We support multiple shipping methods including DHL, FedEx, Aramex, and standard post. Packaging options vary based on quantity:

Dimension 26x20x10cm 26x20x20cm
Quantity 1 unit 2 units
Weight 3.5KG 7KG
Our Services
  • 1-year warranty with extended repair services
  • Sample units available for testing
  • OEM/ODM services supported
  • 24/7 customer support
  • Long-term reliable supply
Frequently Asked Questions
1. How is the performance of this small computer?
Our mini PC uses Intel's latest generation CPU architecture, delivering excellent performance for office software, design applications, web browsing, and multimedia entertainment. It runs small to medium computer games smoothly.
2. What are the advantages of a fanless design?
Fanless computers operate silently with zero noise and don't accumulate dust like traditional fan-cooled systems. They use high-quality, low-power components that generate minimal heat while maintaining performance.
3. Can I add additional storage?
Yes, this computer supports mSATA SSD for the operating system and includes provisions for adding a 2.5" HDD for additional storage capacity.
4. What display sizes does it support?
With HDMI and VGA outputs, this mini PC supports any size display or projector, including full HD 1080p resolution on large format screens.
5. How does the cooling system work without a fan?
The system uses a combination of low-power components, direct heat transfer to the metal casing, and high-quality thermal materials to maintain safe operating temperatures without active cooling.
Company Information

Shenzhen Helor Cloud Computer Co., Ltd (HLY) has specialized in mini computers since 2013. With our own motherboard manufacturing facility, we've developed over 50 self-designed products serving various industries including AI, office, education, industrial, and military applications. Our products are sold in more than 60 countries with annual sales exceeding one million units.

Intel Core i5-4200U Industrial Mini PC with 6*RS232 RS422 RS485 8*USB and IP68 Rated Fanless Embedded Computer 3 Intel Core i5-4200U Industrial Mini PC with 6*RS232 RS422 RS485 8*USB and IP68 Rated Fanless Embedded Computer 4
