| ブランド名: | Helor PC |
| モデル番号: | インテル N100 |
| MOQ: | 1ピース |
| 価格: | $80-$248, Negotiable |
| 配達時間: | 7-15営業日 |
| 支払条件: | T/T、L/C、D/A、D/P、Western Union、MoneyGram |

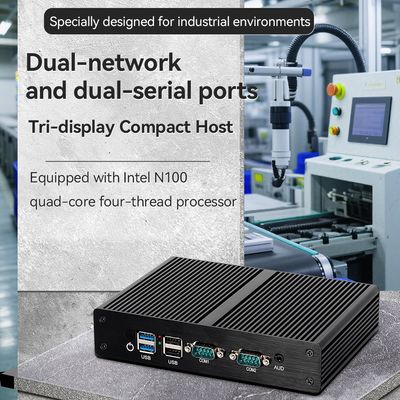

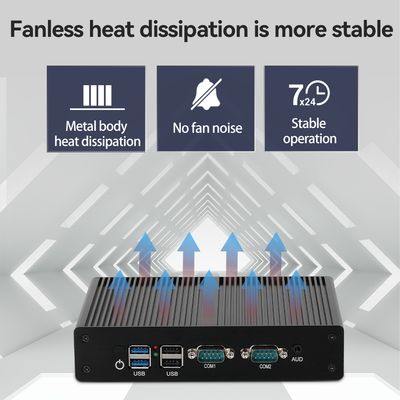

Our Industrial Mini PC features the Intel N100 quad - core processor and a fanless cooling architecture. Leveraging an efficient fin design, it builds a stable thermal management system, ensuring hardware maintains an ideal operating temperature in harsh industrial environments. Its compact form factor occupies minimal space, allowing for convenient installation anywhere.
Equipped with rich professional interfaces (2 LANs, 2 COMs), it enables efficient and accurate data processing and transmission. Supporting up to 16GB DDR5 memory and M.2 hard drives, along with capabilities like 3 - display output and WiFi module compatibility, it serves as a reliable cornerstone for applications such as industrial automation and intelligent monitoring.
| Processor | Supports Intel N100 quad - core processor |
| Memory | 1*SODIMM slot, single - channel DDR5 memory, up to 16GB supported |
| Hard Disk | M.2 NVME 2280*1, 7pin SATA3.0 hard disk port*1 |
| Network | 2*Realtek Gigabit network cards, supporting network wake - up/PXE |
| Front/Rear Interfaces |

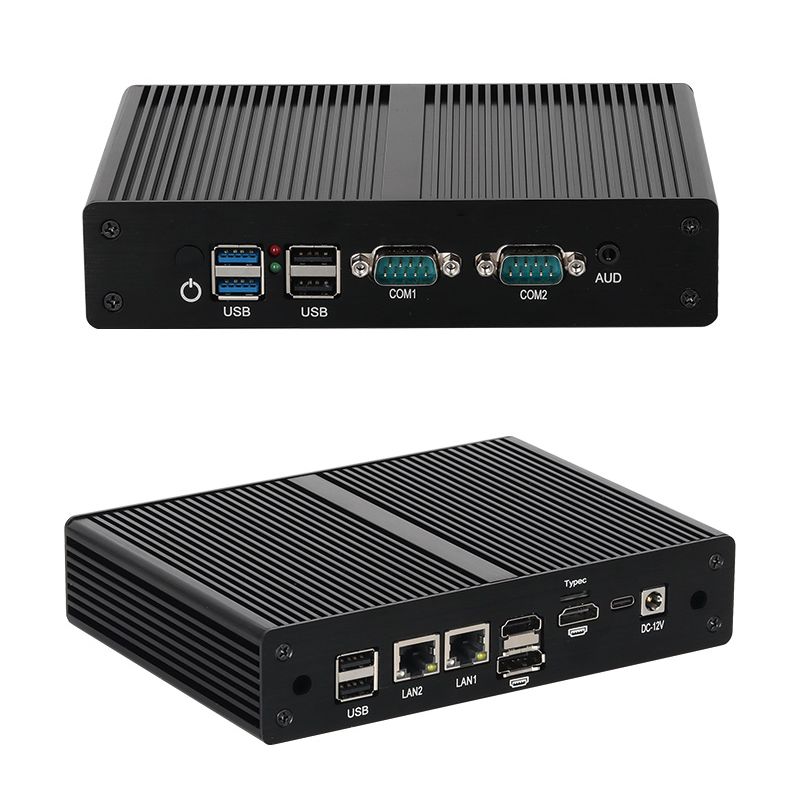

USB2.0*4, USB3.1*2, 1*Type - C display port, 1*12V DC, DB9 RS232 serial port*2 (default RS232, COM1/2 supports RS485 via crossover cable) SPK*1, MIC*1, Gigabit network port*2, DP port*1, HD port*2 |
| Graphics Card | Integrated Intel UHD Graphics core graphics card |
| Display | 1*HDMI1 interface (DP optional), 1*HDMI2 interface, 1*DP2 interface 1*Type - C interface, all supporting 4K@60Hz. Support for simultaneous/asynchronous display of HDMI1, DP, Type - C |
| Expansion | 1*M.2 Key - E, supporting WIFI/BT; 1*M.2 Key - B, supporting 5G, 1*MCPIE slot, supporting WIFI/BT/4G (4G/5G share one SIM card slot) |
| Suitable Temperature | Operation Temperature: -10℃ to +60℃, Storage Temperature: -20°C ~ 70°C |
Our Industrial Mini PC is powered by the Intel N100 processor, featuring 4 cores, 4 threads, up to 3.4GHz with Turbo Boost, and ultra - low 6W power consumption.
Equipped with DDR5 memory and M.2 SSD. The memory ensures efficient data handling, while the M.2 SSD enables fast transmission, vibration resistance, and anti - interference.
It excels in complex tasks like industrial data processing and equipment monitoring, delivering efficient and stable computing performance in harsh industrial environments.
Our Industrial Mini PC appliance suits a wide range of application scenarios. In industrial fields, it plays an important role in production control. It can also be applied to CNC machine tools and beverage vending machines.
Additionally, it proves useful in digital signage, multimedia education, turnstile access control systems, and express pickup lockers, providing reliable support across various sectors.
|
| ブランド名: | Helor PC |
| モデル番号: | インテル N100 |
| MOQ: | 1ピース |
| 価格: | $80-$248, Negotiable |
| パッケージの詳細: | カートンボックス |
| 支払条件: | T/T、L/C、D/A、D/P、Western Union、MoneyGram |
Our Industrial Mini PC features the Intel N100 quad - core processor and a fanless cooling architecture. Leveraging an efficient fin design, it builds a stable thermal management system, ensuring hardware maintains an ideal operating temperature in harsh industrial environments. Its compact form factor occupies minimal space, allowing for convenient installation anywhere.
Equipped with rich professional interfaces (2 LANs, 2 COMs), it enables efficient and accurate data processing and transmission. Supporting up to 16GB DDR5 memory and M.2 hard drives, along with capabilities like 3 - display output and WiFi module compatibility, it serves as a reliable cornerstone for applications such as industrial automation and intelligent monitoring.
| Processor | Supports Intel N100 quad - core processor |
| Memory | 1*SODIMM slot, single - channel DDR5 memory, up to 16GB supported |
| Hard Disk | M.2 NVME 2280*1, 7pin SATA3.0 hard disk port*1 |
| Network | 2*Realtek Gigabit network cards, supporting network wake - up/PXE |
| Front/Rear Interfaces |
USB2.0*4, USB3.1*2, 1*Type - C display port, 1*12V DC, DB9 RS232 serial port*2 (default RS232, COM1/2 supports RS485 via crossover cable) SPK*1, MIC*1, Gigabit network port*2, DP port*1, HD port*2 |
| Graphics Card | Integrated Intel UHD Graphics core graphics card |
| Display | 1*HDMI1 interface (DP optional), 1*HDMI2 interface, 1*DP2 interface 1*Type - C interface, all supporting 4K@60Hz. Support for simultaneous/asynchronous display of HDMI1, DP, Type - C |
| Expansion | 1*M.2 Key - E, supporting WIFI/BT; 1*M.2 Key - B, supporting 5G, 1*MCPIE slot, supporting WIFI/BT/4G (4G/5G share one SIM card slot) |
| Suitable Temperature | Operation Temperature: -10℃ to +60℃, Storage Temperature: -20°C ~ 70°C |
Our Industrial Mini PC is powered by the Intel N100 processor, featuring 4 cores, 4 threads, up to 3.4GHz with Turbo Boost, and ultra - low 6W power consumption.
Equipped with DDR5 memory and M.2 SSD. The memory ensures efficient data handling, while the M.2 SSD enables fast transmission, vibration resistance, and anti - interference.
It excels in complex tasks like industrial data processing and equipment monitoring, delivering efficient and stable computing performance in harsh industrial environments.
Our Industrial Mini PC appliance suits a wide range of application scenarios. In industrial fields, it plays an important role in production control. It can also be applied to CNC machine tools and beverage vending machines.
Additionally, it proves useful in digital signage, multimedia education, turnstile access control systems, and express pickup lockers, providing reliable support across various sectors.
